PCB Model HTJ356B01 Accelerometer

The PCB Model HTJ356B01 accelerometer achieves ground isolation by attaching the accelerometer to a three sided titanium cup that contains an insulating glass filled epoxy.

August 24, 2017
PCB Piezotronics, Automotive Sensors Division

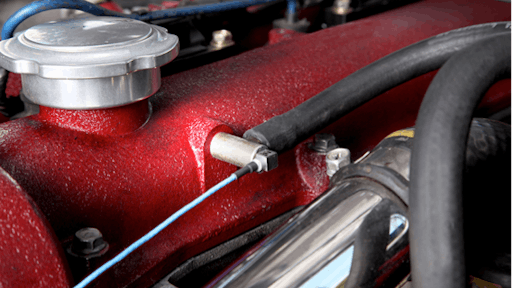

The PCB accelerometer mounted on an engine.

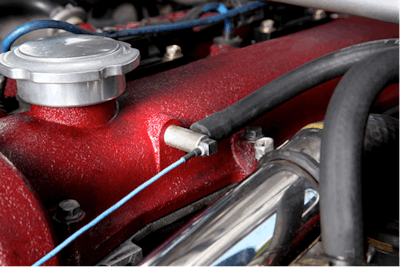

The PCB accelerometer mounted on an engine.
Pcb Logo

PCB’s accelerometer, Model HTJ356B01, is suited for applications that demand ground isolation to reduce electrical noise and ground loops on test articles in higher temperature environments.

  • Achieves ground isolation by attaching accelerometer to three sided titanium cup that contains an insulating glass filled epoxy
  • Features high temperature ICP operation up to 356 F (180 C), with full temperature range of -65-356 F (-54-180 C)
  • Sensing elements provide 5 mV/g output over a 2-8K Hz frequency range and are hermetically sealed in rugged, scratch-resistant, titanium housing
  • Overall cube size of just 0.28 in. (7.1 mm) and weight of 1 gram (0.04 oz.) well suited for use in space-restricted test locations
  • Typical applications include environmental stress screening and NVH testing in high temperature environments
