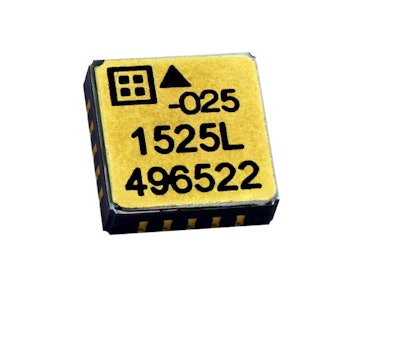

Silicon Designs Inc. has announced the North American market introduction of its Model 1525 Series integral inertial accelerometer family, now available for immediate customer shipment.
- Offers low-noise performance
- Nitrogen damped and hermetically sealed
- For tactical navigation, seismic and other zero-to-medium frequency instrumentation applications that require high repeatability, low noise and maximum stability
- Miniature in size and hermetically sealed package
- Combines MEMS variable capacitive sense element and custom integrated circuit that includes both a sense amplifier and ±4.0V differential output stage
- Available in six unique full-scale ranges from ±2 to ±100 g
- Provides reliable performance over a standard operating temperature range of -40 to 85 C
- Series units are also relatively insensitive to wide temperature changes and gradients
- Each device is marked with a serial number on its top and bottom surfaces for traceability
- Calibration test sheet is supplied with each unit, showing measured bias, scale factor, linearity, operating current and frequency response
- Well suited for commercial and tactical guidance, navigation and control (GN&C) applications including Unmanned Aerial Vehicles (UAVs), Unmanned Ground Vehicles (UGV), Remotely Operated Vehicles (ROV) and Robotic Control systems, as well as agricultural, oil and gas drilling, photography, and meteorological drones
