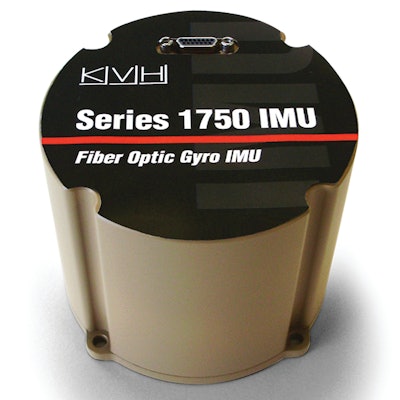

Series 1750 Inertial Measurement Unit

KVH Industries introduces its Series 1750 Inertial Measurement Unit for stabilization, pointing and navigation applications.

Series1750imu 10726036

KVH Industries Inc. introduces the Series 1750 Inertial Measurement Unit (IMU), an advanced 6-degrees-of-freedom sensor (DOF) designed to integrate easily into the most demanding stabilization, pointing and navigation applications.

  • Combines E Core ThinFiber technology of fiber optic gyro with low noise, solid state MEMS accelerometers
  • Offers precision in a small form factor, making it well suited for applications where space is limited, such as unmanned and autonomous systems
  • Includes industry standard RS-422 interface and user programmable data outputs
  • Provides highly accurate 6DOF angular rate and acceleration data
  • Delivers bias stability (<0.05 degrees/hr)
  • Cylindrical package has 3.5 in. diameter and 2.9 in. height (89 mm diameter x 74 mm high)
  • Weighs less than 1.4 lbs. (<0.6 kg)
  • Elimination of moving parts improves life span vibration resistance
