Ekinox Series MEMS-Based Tactical Grade Inertial Systems

SBG Systems introduces its Ekinox Series MEMS-based tactical grade inertial systems which feature a 0.05 degree attitude accuracy.

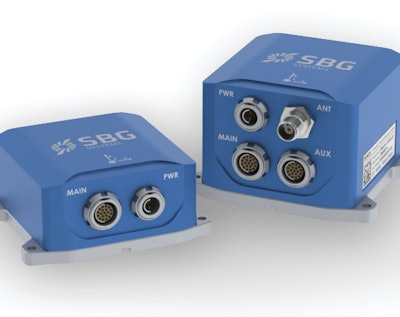

Sbgsystems Ekinoxseriesinertia 10852905

SBG Systems presents Ekinox Series, a product range of tactical grade inertial systems which brings robust and cost-effective MEMS to the Fiber Optic Gyro (FOG) level.

  • Series consists of two ITAR Free models
  • Ekinox AHRS (Attitude and Heading Reference System) provides 0.05 degree 3D Attitude over 360 degrees and 5 cm heave, surge and sway
  • Ekinox INS (Inertial Navigation System) delivers additional 2 cm position due to embedded GNSS receiver
  • Up to four external aiding equipments can be simultaneously connected to Ekinox INS, including RTK GNSS, Odometer, DVL, EM Log, etc. to further enhance performance
  • Brings robust, maintenance-free and cost-effective MEMS technology to FOG accuracy
  • High-end MEMS sensors, advanced calibration procedure and powerful algorithm design allow achievement of 0.05 degrees attitude in compact and affordable package
  • For use in harsh environments and high demanding applications
  • IP68 enclosure is constructed of aluminum
  • Outputs data at 200 Hz, with 3 millisecond latency
  • Offers very low noise on Euler Angles (< 0.03 degrees)
  • All data can be recorded into the 4 GB internal data logger, displayed in real-time throughout an intuitive embedded interface and analyzed in the sbgCenter software
  • Includes specific error-correction models to achieve optimized performance
