The Sensor Connection ILPS-45 Series Inductive Linear Position Sensor

The Sensor Connection's ILPS-45 Series inductive, contactless linear position sensor features works over a wide operating temperature range withstands high shock and vibration.

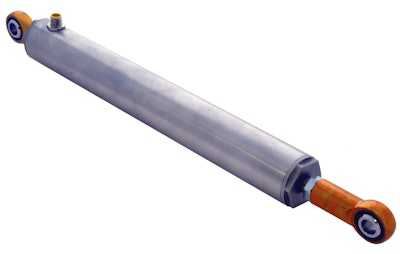

Lvit Position Sensor Lv 45 Series 58d96a160e548
Thesensorconnection 10056444

The Sensor Connection has released its ILPS-45 Series inductive, contactless linear position sensor using LVIT Technology.

  • For measuring applications requiring rugged devices
  • Withstands high vibration and severe shock environments, as well as extremes of temperature and humidity
  • Uses proprietary inductive technology that allows it to replace traditional DC-LVDTs in most applications
  • Simple coil design permits sensor to be both shorter and more rugged than DC-LVDT counterpart while operating over wider temperature range
  • Available with optional mounting flanges, rod eye ends, connector or cable terminations, and captive connecting rod assembly that cannot break loose
  • SenSet range adjustability feature allows user to scale sensor's zero and full span output to actual range of motion of workpiece being measured after sensor is installed
  • Operating temperature range is -40-85 C (-40-185 F)
  • Ranges from 4-18 in. (100-450 mm)
  • Double shaft seals keep dirt and grime out of bore
  • Axial or radial connector or cable terminations
  • Features 1.75 in. (44.5 mm) outer diameter body with 5 mm (0.2 in.) wall thickness
  • 1/2-20 UNF threaded or rod eye end connecting rod
  • Optional mounting hardware
  • Operates from variety of DC voltages
  • Provides choice of four analog outputs
