TE Connectivity Hydraulic LVDT Position Sensors

The LVDT position sensors for hydraulic applications are capable of withstanding high pressure up to 10,000 psi.

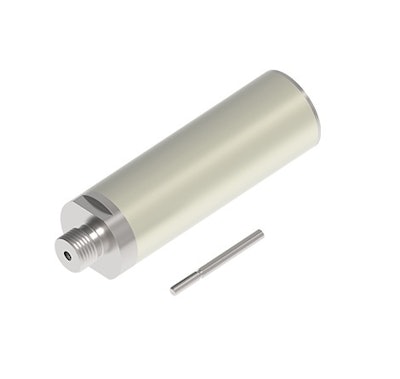

Hydraulic Lvdt Sensor 470x445
Te Logo

LVDT (Linear Variable Differential Transformer) position sensors from TE Connectivity offer standard and custom solutions based on hydraulic application requirements of off-highway equipment and industrial machine tools.

  • Enables better system and feedback controls with high accuracy and fast response time
  • Optimized for hydraulic valves and actuators
  • Highly accurate, reliable, compact and adaptable
  • Can measure spool position within one-thousandth of an inch and infinite resolution
  • Friction-free operation enables reliable sensor life and repeatability, allowing use in demanding, high-cycle applications
  • Hermetically sealed and can be mounted inside valves
  • Capable of withstanding high pressure up to 10,000 psi (689.5 bar) and harsh exposure such as to hydraulic fluid
  • Compact design which can fit in restricted spaces and maximize stroke length in a given area
  • Stroke lengths as low as +0.005 in. (0.127 mm)
  • Can be adapted to work in select valve applications that currently do not use LVDTs due to space constraints
  • AC or DC units are available
