ASM posichron PCFP25 Ultra-Flat Non-Contact Magnetostrictive Position Sensor

The PCFP25 provides measurement ranges from 100-5,750 mm and is designed for use in space-restricted applications.

May 10, 2019
ASM Sensors Inc.

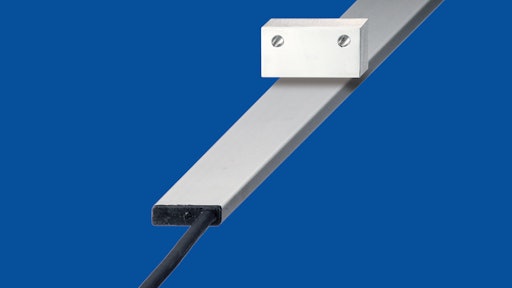

Pcfp25 Magnet 3000px
Asmsensors 10055038

ASM presents a contactless, ultra-flat magnetostrictive position sensor for space-restricted applications such as in mobile machines, the posichron PCFP25.

  • Absolute, non-contact and wear-free position sensor
  • Measurement ranges from 100-5,750 mm (3.9-226.4 in.)
  • Consists of magnetostrictive waveguide and moveable position magne
  • Dimension of the slim profile is only 8 mm (0.3 in.) in thickness
  • Resistant to dirt, moisture and dust
  • Resists shocks up to 50g
  • Protection class IP67
  • Profile designed especially to suite limited space applications such as crane outriggers
  • Analog and digital outputs are available
  • Reaches linearity up to +/-0,02% f.s.
  • Can be mounted in redundant design for safety applications
