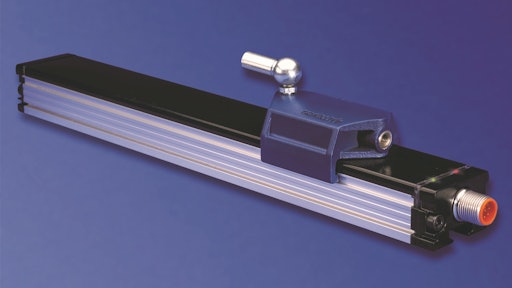

Novotechnik TF1 Series Touchless Position Sensors

The TF1 Series is unaffected by strong magnetic fields and metal flakes or filings present in user’s environment.

Novotechnik

Novotechnik U.S. introduces the TF1 Series of touchless position sensors that are based on patented new-inductive technology.

  • Unaffected by strong magnetic fields and metal flakes or filings present in user’s environment
  • Consists of inductively coupled position marker attached to moving rod/piece of user’s application that requires position measurement and the sensor with operational and programming status LEDs
  • LEDs indicate whether sensor is operating and marker is within measuring range, out of range as well as indicating results of internal diagnostics for valid output
  • Physical properties measured are position, and for some digital interfaces speed and temperature
  • Stroke lengths of 100-1,000 mm (3.9-39.4 in.)
  • Resolution to 1 µm
  • Absolute linearity of ≤ ±0.025% of full scale for analog and ≤ ±100 µm for digital outputs
  • Reproducibility of ≤10 µm for ≤ 400 mm (15.7 in.) stroke lengths and ≤20 µm for >400 stroke lengths for analog outputs
  • High-precision mode for digital outputs features repeatability to <5 µm
  • Update rate of >10kHz—equivalent to <100 µsec
  • Plug-in compatible with many existing sensors including magnetostrictive and resistance track sensors
  • Operation within specifications with up to 100 g shock and 20 g vibration
  • Sealed to IP67
  • Operating temperature range of -40-85 C (-40-185 F)
  • Unlimited mechanical life with floating position marker
  • Output interfaces include analog voltage or current, SSI, CANopen and IO-Link
