Novotechnik Vert-X 05E Series Magnetic Rotary Position Sensors

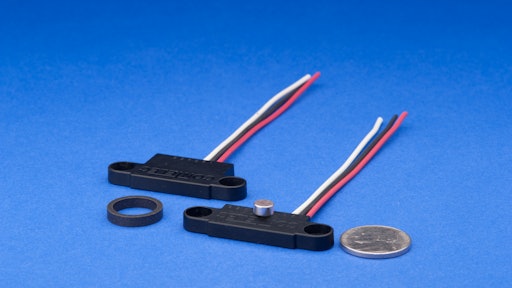

Novotechnik's Vert-X 05E Series magnetic rotary position sensors is available in single and redundant versions.

Vert X 05 E

Novotechnik U.S. introduces the Vert-X 05E Series of magnetic  rotary position sensors with compact, flat housing.

  • Interfaces include analog, SPI and incremental
  • Available in single and redundant versions
  • Touchless magnetic angle sensors with permanent magnet
  • Can be secured to an application’s rotating shaft so there is no direct mechanical linkage between shaft and measuring system, and therefore no wear
  • Features 5 mm (0.19 in.) profile, 0-360 degree measurement range,
  • Offers repeatability of 0.1 degree or better, and maximum hysteresis of 0.1 degree
  • Sample rate is up to 5 kHz
  • Active measurement region extends to within 6 mm (0.24 in.) from edge of housing
  • Includes 5 and 24V supply models
  • Analog outputs are 0.5- 4.5V for the 24 version and 10-90% of supply voltage for 5V version
  • Positive output for CW or CCW rotation direction is achieved by flipping the assembly over
  • MTBF of 668 years
  • Ingress protection rating of IP68
  • Operating range of -40-125 C (-40-257 F)
