External Position Sensor

May 24, 2011
Rota Engineering Ltd.

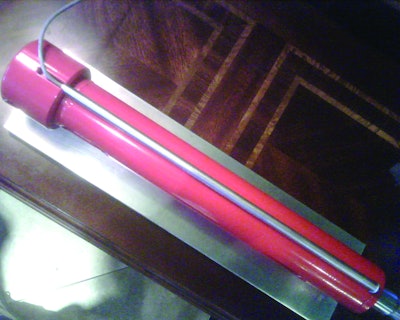

Externaltransducerpicture 10276845
Rotalainemcylinder 10276846

Rota has developed the latest evolution in the world of position sensing of hydraulic cylinders, external Hall Effect sensing for EH control. With the advent of lower cost through automation the next logical step in overall cost reduction comes through a new patent applied for method of utilizing a linear transducer outside the cylinder.

Request More Information
Fill out the form below to request more information about External Position Sensor
