4-20mA Hall Effect Position Sensor

API Technologies introduces the latest addition to its Spectrum Sensors line, a 4-20mA output Hall effect position sensor.

December 14, 2011
API Technologies Corp.
Halleffectprecisionsensorhires 10525271

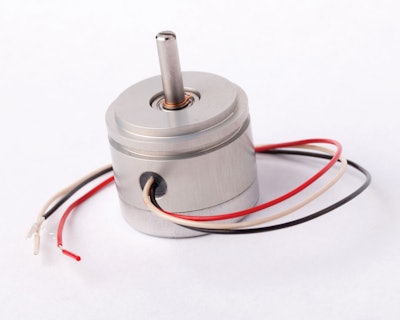

API Technologies Corp. announces the latest output option for its Spectrum Sensors line of H009 Hall Effect Position Sensors. The 4-20mA output option joins the existing H009 series with Analog, PWR and Serial output options.

  • Converts relative changes in magnetic field into electrical signal to provide position change information
  • Provides accurate measurement of position change in an angular direction
  • Features .875 in. diameter with .750 in. maximum length
  • Includes 12-bit resolution with a rotational life of over 100 million revolutions
  • Offers absolute linearity of +/- 0.1% at ambient room temperature and +/- 0.3% at -40 to 125 C
  • Special shaft, flange mounting and gear mounting frame configurations are also available
  • Available with several options including lead wires, lead lengths and terminations; HR370 High TG printed circuit boards; and JST and Molex terminals
