Model 9960 Hall Effect Rotary Position Sensor

BEI Sensors' Model 9960 Hall effect rotary position sensor offers numerous configurations including single or dual outputs.

March 2, 2012
BEI Sensors
Halleffectrotarypositionsensor 10636978
Bei Sensors Logo Highres 10719595

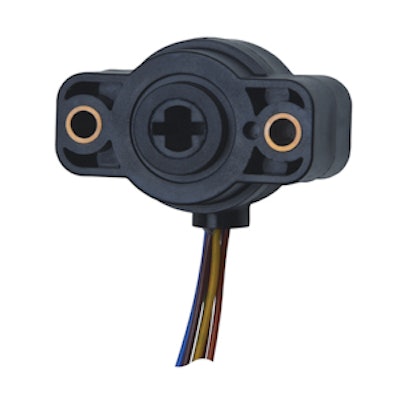

BEI Sensors’ Model 9960 Hall effect rotary position sensor is available in numerous standard configurations including various termination options, single or dual outputs and 24 active electrical angles.

  • Features 360 degree turn capability
  • Can be used over large range of rotary motion
  • Housing is IP67 sealed
  • Utilizes non-contacting Hall effect technology for ruggedness and reliability
  • Well suited for a variety of applications in harsh environments, including steering and pedal positioning for construction, agriculture and mining vehicles
