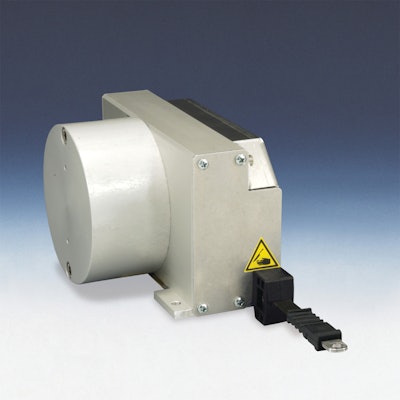

WB25 Series POSITAPE Position Sensors

ASM Sensors has released the WB25 Series of its tape extension position sensors.

Wb25 10692791
Asmsensors 10055038

ASM Sensors has expanded its product line of tape extension position sensors, POSITAPE, with the introduction of the WB25 series.

  • Angular sensing element consists of magnetic encoder which translates linear motion into electrical signal
  • Available in measurements of 12 m, 15m, 20m and 25m
  • Features compact housing
  • Highly flexible measurement tape is constructed out of high-tech stainless steel material that is 10 mm wide with a 0.08 mm thickness
  • Shock and vibration resistant
  • Smooth surface reduces risk of icing
  • Tape dust wiper automatically cleans tape each time it is retracted into housing
  • Includes standard IP64 enclosure rating with option for IP67 rating
  • Available with analog outputs of 0.5 to 10V, 0.5 to 4.5V and 4 to 20 mA
  • Digital output versions with CANopen, CAN SAE J1939 and SSI protocols are available
  • Linearity is +/- 0.05% of full scale
