SRH520CN Contactless Rotary Position Sensor

Penny + Giles introduces its SRH520CN contactless rotary position sensor which is available in two CAN bus interface versions.

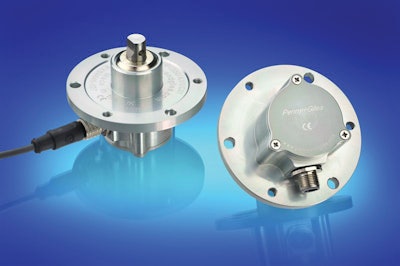

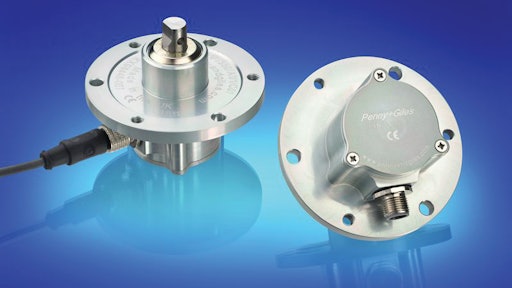

Pennygiles Srh520cnsensor Blue 10722392

Penny + Giles – a business group of Curtiss-Wright Controls - has continued the development of its SRH500 range of contactless rotary position sensors with the introduction of the SRH520CN.

  • Available in two CAN bus interface versions
  • Integrates additional electronics to provide either J1939 or CANopen options according to ISO/DIS 11898
  • Both versions also feature a 14 bit non-contact Hall effect sensor offering 0.022 degree resolution
  • Avoids use of cost-intensive I/O or gateway modules
  • Features shaft side protection to IP69K
  • Offers minimum IP67 protection to the rear when M12 mating connector is attached and fully engaged
  • Operates from a 9 to 30V DC unregulated supply
  • Output can be specified in a clockwise or anticlockwise direction
  • Available in a marine-grade aluminium housing with 87.5 mm diameter flange and 12 mm diameter shaft
  • J1939 version offers Direction, Baud Rate, Node ID and Frame Rate parameters
  • CANopen version provides either Baud Rate or Node ID parameters, and is customer configurable to CIA standard DS 301 protocol and supports device profile for DS 406 encoders
