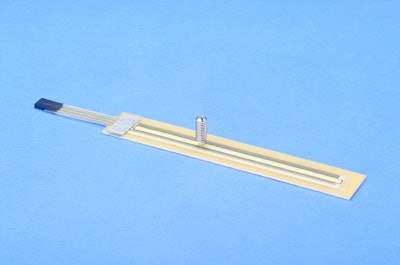

Novotechnik’s LFP Series membrane potentiometers are designed for applications that require a linear position sensing device in a narrow space.
- Provides linearity to ±0.3% and lifespan of over 25 million cycles
- Operates using a screw-style pin attached to an application
- Runs across membrane connecting sensing track to conductive ink track printed on a substrate through the applied pressure from the pin
- As pin moves across the membrane the resistance monitored at the attached connector plug changes corresponding to the position of the pin
- Hermetically sealed against ingress of liquids and dust to IP67
- Operates in temperatures up to 125 C
- Available in 10 standard lengths from 50 to 500 mm
