TH1 Touchless Sensors

The Novotechnik TH1 touchless sensors can be integrated into high-pressure hydraulic and pneumatic cylinders.

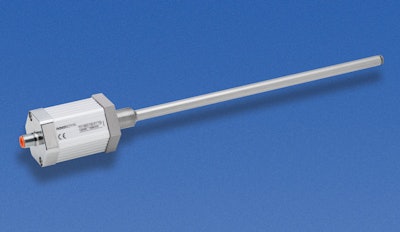

Novotechnik TH1TouchlessSensor 54931a0bea16b

Designed for continuous use at operating pressures up to 350 bar, the Novotechnik TH1 touchless sensors are readily integrated into high-pressure hydraulic and pneumatic cylinders.

  • Provides direct, precise and absolute measurements from 100 to 4,250 mm with single or multiple position markers
  • Analog output options are 0.1 to 10V DC, 0.1 to 20 mA and 4 to 20 mA
  • Digital interfaces include SSI and Start/Stop
  • Highly resistant to shock up to 100 g and vibration up to 20 g
  • Features sealing to IP68, linearity to 10µm and resolution to 1 µm regardless of stroke length
  • Offers reproducibility to 6 µm and compression peaks to 600 bar
  • Applications include fluid power valve position and liquid level measurement, and use in off-road agriculture, construction as well as other mobile equipment
