MTS Sensors GB Series High Resolution Magnetostrictive Position Sensors

The MTS Sensors GBS position sensors include synchronous serial interfaces to enhance reliability and signal integrity in harsh operating environments.

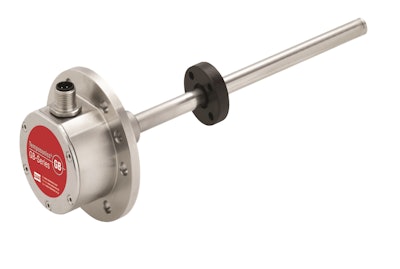

MTSSensors GBSPositionSensors 5526c3d1ed300
Temposonics With Amphenol Logo Red Jpg

MTS Sensors introduces the GBS high resolution magnetostrictive position sensors featuring a synchronous serial interface (SSI).

  • Based on the company’s proprietary Temposonics technology which provides an extremely accurate, non-contact method for measuring position
  • Delivers industry-leading levels of linearity (up to ±0.02% full scale) and repeatability (up to ±0.005% full scale)
  • Rod shaped and highly optimized for incorporation into hydraulic cylinders
  • Available with measuring lengths between 25 mm and 3.25 m
  • Flat, compact housing for supporting electronics makes for easy deployment in restricted spaces
  • Features IP67-rated ingress protection with an adapted connector or IP68-rated protection for models with cable outlets
  • Includes high pressure resistance and strong immunity to electro-magnetic interference
  • Operating temperature range is -40 to 90 C (194 F)
  • Extended temperature range version reaches ranges of -40 to 100 C (212 F)
  • Allows users to select between SSI and analog output options as appropriate
  • SSI functionality dramatically enhances reliability and signal integrity in harsh industrial environments, enabling 5 µm measurement resolution to be attained
  • Programmable using a hand-programmer unit orcomputer via USB port
  • Can be programmed wirelessly via Bluetooth to expedite implementation process and make maintenance easy to undertake, especially when sensors are located in hard to reach places
  • Programming software enables user to set and adjust a wide variety of different parameters, such as synchronous/asynchronous measurement modes, measuring direction, coding and data length
