BEI Sensors Model 9970 Hall Effect Position Sensor

BEI Sensors has introduced the Model 9970 Hall effect position sensor featuring IP67 and IP69K sealing and a heavy-duty design for use in harsh operating environments.

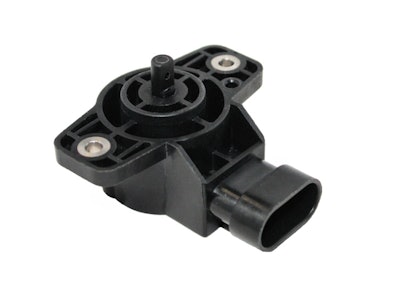

BEI Sensors 9970 Hall effect rotary position sensor 555ce5c6f0a22
Bei Sensors Logo Highres 10719595

The Model 9970 Hall effect position sensor from BEI Sensors ships quickly, within two weeks, and features a 50 mm mounting hole spacing for drop-in compatibility with existing installations.

  • Comes standard with 1.5 Series AMP Superseal connector
  • Well sealed IP67 and IP69K packaging uses non-contacting technology, ensuring ruggedness and durability for applications in harsh environments
  • Features extended operating life of up to 35 million cycles and a temperature rating from -40 to 125 C
  • Heavy-duty design allows for precise motion control feedback in a variety of wash-down and dirty and dusty applications
  • Comes in two standard output configurations of 0 to 5V ratiometric or 4 to 20 mA for ease of specification and use across applications
  • Ability to travel full 360 degrees allows use over a large range of rotary motions
  • Overvoltage protection prevents possible damage from installation errors
  • Highly resistant to electromagnetic interference, up to 200V/m, to limit radio interference
  • Suited for harsh environments including steering and pedal positioning for off-highway construction and agricultural vehicles, mining and material handling equipment and for valve position indication or control
