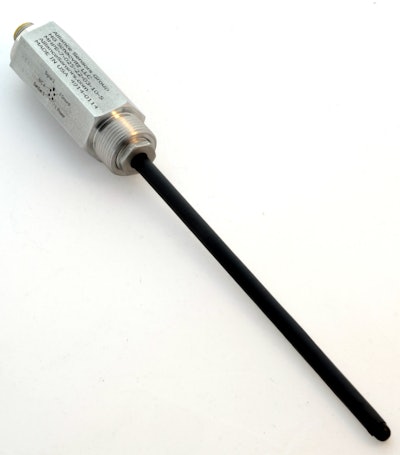

Alliance Sensors Group, a division of H.G. Schaevitz LLC, has expanded its in-cylinder position sensor product line to include the MHP-7 Series linear inductive sensors.
- Compactly designed
- Can be installed into rear endcap of hydraulic cylinders for operation at pressures up to 5,000 psig
- Hex aluminum or stainless steel housing measures 1 in. and suits use for mobile hydraulics, factory automation machinery, or oil and gas exploration equipment
- Housing mounts to cylinder with standard male o-ring port thread
- Requires no magnet
- Contactless design eliminates wear from cycling or dithering
- Measurement ranges from 25 to 600 mm (1 to 24 in.)
- Provides excellent stroke-to-length ratio
- Includes SenSet for field scalability of analog output
- Employs 7 mm diameter probe inserted into an 8 mm (5/16 in.) gun-drilled hole in the cylinder rod to measure position rather than a ring magnet or pot contact spool
