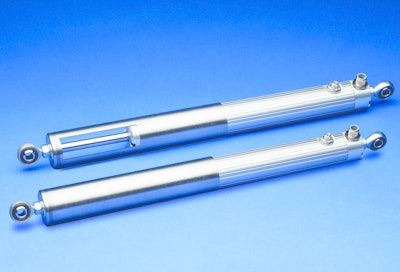

Novotechnik U.S. introduces the LWX-003/004 Series of position sensors designed for extremely harsh environments.
- All-metal shaft features pressure equalization valve
- LWX-004 version also provides rod protection over its range of motion with an SS304 alloy, 0.9 mm thick stainless steel shield
- Differential pressure compensation system compensates for pump effect - pressure that can build up due to push rod movement
- Pressure compensation works together with hydraulic shaft seal to provide protection against ingress of liquids and dust
- Features seal rating of IP67
- Backlash-free pivot heads are designed for easy mounting and permit ±12.5% free movement
- Provides operation with shock to 50 g and vibration to 20 g
- Stroke lengths are 50 to 750 mm
- Delivers linearity to 0.04% and life of more than 50 million movements
- Offers repeatability of 0.01 mm
