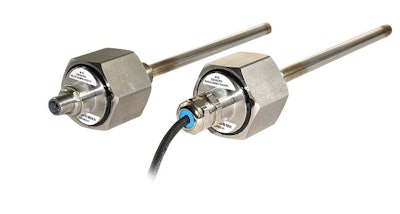

MTS Sensors MH5 Threaded Flange Magnetostrictive Linear Position Sensor

The MH5 threaded flange sensor from MTS Sensors supports stroke lengths of up to 2,500 mm and features a screw mechanism for easy installation in difficult to access areas.

MTS MH5ThreadedFlangeOptionLinearPositionSensor 57028e11e0eaf
Temposonics With Amphenol Logo Red Jpg

MTS Sensors, a division of MTS Systems Corporation, introduces the MH5 threaded flange option of its MH Series magnetostrictive linear position sensors.

  • Highly robust design
  • Optimized for mobile applications, as well as fuel tank level measurement
  • Delivers high performance operation, with a ±0.1 mm typical resolution, repeatability of ±0.1 mm and a ±0.04% linearity (full scale)
  • Stroke lengths of up to 2,500 mm (98.4 in.) are supported
  • Sensor rod is available in 7 and 10 mm (0.28 and 0.39 in.) diameters
  • Operational temperature ranges from -40-105 C (-40-221 F)
  • Offers more robust alternative to contact-based linear sensors such as potentiometers for prolonged working life
  • Can be used for upgrading existing sensing systems without having to change surrounding mechanical structure
  • Screw mechanism enables easy implementation into areas that are difficult to access
  • Withstands harsh external environments
  • Proprietary Temposonics magnetostrictive technology ensures devices are not vulnerable to vibration, shock, dust and electro-magnetic interference
