Alliance Sensors ME Series Linear Position Sensors

The ME Series Linear Position Sensors from Alliance Sensors Group are designed to be a robust drop-in replacement option for embedded magnetostrictive sensors.

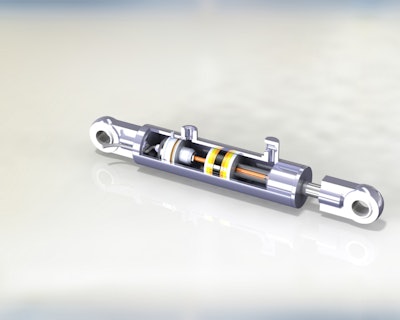

ME 1 rendered in situ 1 4 Cutaway 05 06 13 572ca87eb2a68
Headerimagealliancesensors 10933034

Alliance Sensors Group announces the ME Series of Linear Position Sensors for embedded use in measuring the ram position of hydraulic and pneumatic cylinders in industrial, mobile or subsea applications.

  • Designed to be drop-in form, fit and function replacement for embedded magnetostrictive sensors but with more robust construction and lower cost of ownership
  • Can replace embedded resistance potentiometers, offering high accuracy without wearout
  • Contactless inductive sensing technology uses solid probe construction and requires only a simple conductive tubular target or a small diameter deep hole gun drilled in cylinder rod for operation rather than needing a permanent magnet ring, counter-bored hole, or any other type of special target
  • Withstands intense shocks and vibration, and operating temperatures up to 85 C (185 F) for standard products and 125 C (257 F) for custom units
  • Uses simple coil design rather than “time-of-flight” technology or resistive film
  • Head similar to that of typical embedded sensors and fits into same 48 mm (1.89 in.) diameter cavity as a magnetostrictive sensor or potentiometer fitted into the end housing of a cylinder
  • Magnet ring can usually be left in place without significantly affecting performance for applications where an existing magnetostrictive sensor is being replaced
  • Available in full ranges from 2-36 in. (50-900 mm) with either analog DC voltage or current outputs
  • Features linearity error less than or equal to ±0.1% of Full Scale Output, and -3 dB frequency response of 500 Hz
  • Contactless design prevents wear and output signal deterioration over lifespan
  • Offered in diameters of 7 mm/0.28 in. (ME-7) for industrial use and 11 mm/0.43 in. (ME-11) for heavier duty or larger cylinder use
  • Comes standard with lead wires, a 4-conductor cable, or a field-assembled 2-piece M-12 connector
  • Housing sealed to IP-67 and uses no trimmer pots for setting Zero and Full Scale
  • Proprietary SenSet calibration feature permits user to match analog output to motion of actuator or cylinder on a stand-alone basis rather than having to scale sensor's basic output in an associated control system
