Alliance Sensors LR-27 and LRL-27 Series Inductive Linear Position Sensors

Alliance Sensors Group's LR-27 and LRSL-27 Series position sensors feature a contactless design to prevent wearout and feature an anodized aluminum housing sealed to IP67 for use in harsh operating environments.

May 10, 2016

Alliance Sensors Group a div of HG Schaevitz LLC

Linear Position Sensor LR 27 Series 5732343508876

Headerimagealliancesensors 10933034

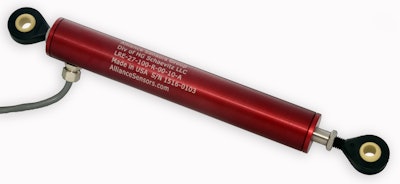

Alliance Sensors Group, a div of H.G. Schaevitz LLC, has expanded its sensor product offering by adding to its line the LR-27 and LRL-27 Series Inductive Linear Position Sensors.

Contactless operation prevents wearout from dither or cycling
For use in heavy-duty environments
Compact yet robust design
LR-27 has six ranges from 1-8 in. (25.4-203.2 cm)
LRL-27 has five ranges from 10-18 in. (254-457.2 mm)
Excellent stroke-to-length ratio
Anodized aluminum housing is sealed to IP67 and measures 27 mm (1.05 in.) in diameter
Radial cable exit version comes with swivel rod eye ends
Axial termination versions with either M-12 connector or 1 m cable available
Operates from a variety of DC voltages,
Offers choice of four analog outputs
All units include proprietary SenSet field scalability feature

Fill out the form below to request more information about Alliance Sensors LR-27 and LRL-27 Series Inductive Linear Position Sensors
