Model DPS Digital Pressure Sensors with CANopen

The Honeywell Digital Pressure Sensors with CANopen feature an all-welded, stainless steel design for durability in a wide range of heavy-duty applications.

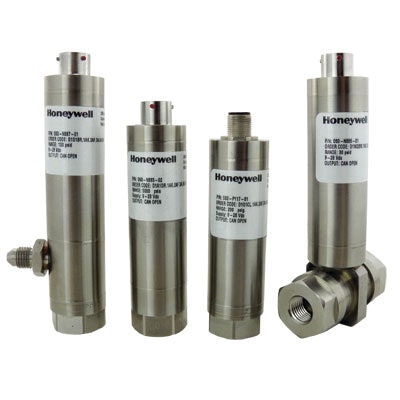

Honeywell Pressure Sensor With 11132050

Honeywell Sensing and Control’s Digital Pressure Sensors with CANopen, Model DPS, are rugged, all-welded and provide consistent performance in harsh environments.

  • Highly configurable, enabling customers to choose from multiple pressure types, accuracy levels, pressure ranges, pressure connections, and electrical terminations to meet application needs
  • Configurations for digital measurements are fully temperature compensated and calibrated for pressure ranges 10 to 10K psi or 1 to 700 bar or 70 to 70,000 Kpa
  • Provides accuracy ranges of 0.25% and 0.1%, and operating and storage temperature ranges from -25 to 85 C (-13 to 185 F)
  • All-welded, 300 Series stainless steel and Hastelloy design allows use in a wide range of harsh environments
  • Mechanical shock rating of 100 G/11 ms and IP65 rating enable use in harsh environments
  • Allows connection to longer cable distances without sacrificing accuracy
  • CANopen protocol enables reduction of wires connected to system, simplifies installation, mitigates data corruption
  • Simplifies tracking each networked pressure sensor by using unique serial numbers
  • Configures update rate between 10 and 250 Hz for easy configurability
  • Multiple pressure engineering units eliminate having to make mathematical conversions
  • Customers can select the accuracy level required for application
  • Specifies Total Error Band ±2% FS for comprehensive, clear and meaningful measurement that includes nonlinearity, repeatability, hysteresis and temperature error
