GA-1280J-15A SWIR Camera

Goodrich ISR Systems introduces a 1.3 Mpixel SWIR camera that is lightweight, compact and offers high sensitivity.

Prga1280jseriescamerawithcoinb 10256321

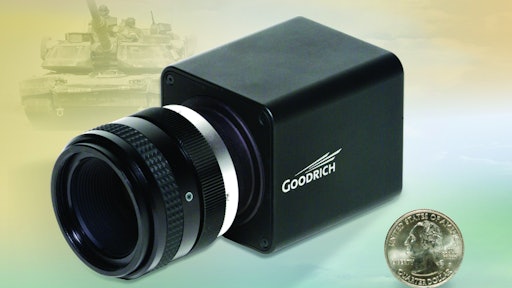

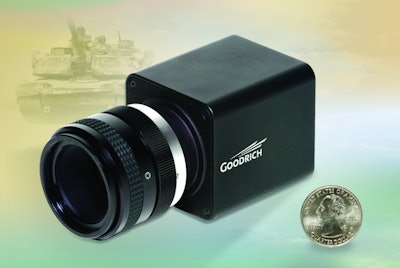

Goodrich ISR Systems introduces a 1.3 Mpixel, indium gallium arsenide (InGaAs) video camera, the GA-1280J-15A, offering the highest sensitivity available in a military-hardened NIR-SWIR camera. The high-resolution J-Series SWIR camera is compact and lightweight to easily fit on board most unmanned aerial or ground vehicle systems, hand-held, and mobile surveillance systems.

  • Measures less than 4.3 cubic in. and weighs less than 125g
  • Features 1280 x 1024 pixels with 15μm pitch and 60Hz full frame rate
  • Two versions available, one operates in shortwave infrared from 0.9 µm to 1.7 µm spectral range, the other offers extended NIR-SWIR range from 0.7 µm to 1.7 µm
  • Can image through fog, smoke, haze, or dusty conditions
  • Works from low-light to daylight
  • Two OEM models allow integration into existing gimbaled or handheld imaging systems
  • Enables visual verification of laser location and imaging during thermal crossover
  • Includes on-board automatic gain control (AGC) and built-in non-uniformity corrections (NUCs)
  • Internal circuitry of ROIC and dynamic range processing on board address challenges of urban night imaging without blooming
  • Camera Link digital output provides intuitive plug-and-play video operation with high quality 12-bit images for digital image processing or transmission
