GA640C-15A Cubic Inch SWIR Camera

Goodrich Corporation introduces its cubic inch SWIR camera designed to be compact and lightweight for military applications.

Goodrichcubicinchccamera 10704736

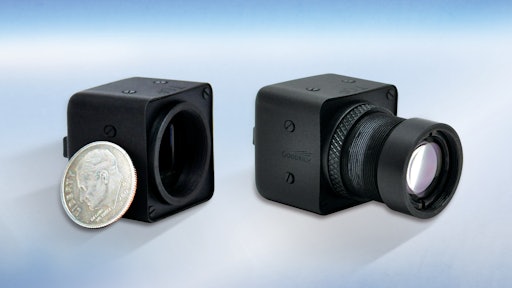

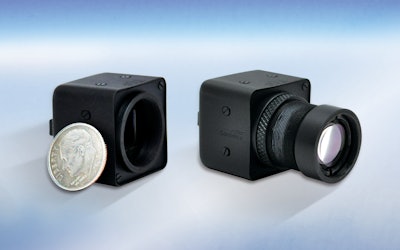

Goodrich Corporation introduces its smallest shortwave infrared (SWIR) camera. The GA640C-15A is smaller, lighter and uses less power than many other SWIR cameras on the market today.

  • Offers a volume less than one cubic inch, weighing 26 g without its lens
  • Consumes 1.5 watts of power
  • Well suited for imaging systems where size, weight and power consumption must be minimal
  • Features 640 x 512 pixel resolution with a 15-micron pitch
  • Camera Link digital output provides plug-and play, 12-bit imagery for viewing, digital processing and transmission
  • Uncooled SWIR detects images in real-time video (30Hz), daylight to low light, through smoke, haze and fog conditions
  • Operates without temperature stabilization using non-uniformity corrections (NUC) parameterized over temperatures
  • Provides on-board automatic gain control (AGC), for hands-free operation
  • Operates from 0.9 to 1.7 micron spectral range
  • Optional near infra-red (NIR) camera model extends spectral response to include range from 0.7 to 1.7 microns
  • Works in temperature range from -35 C to 71 C
