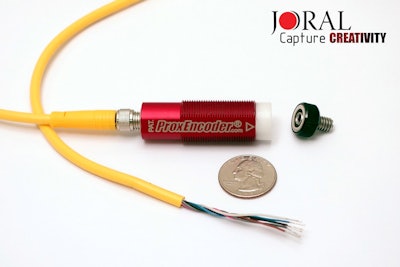

Joral PE18 ProxEncoder Non-Contact Rotary Encoder

The Joral PE18 non-contact rotary encoder is 100% encapsulated to IP69k environmental protection and works with various communication protocols including CAN J1939.

March 1, 2018

Joral LLC introduces the PE18 ProxEncoder non-contact rotary encoder product line.

Features 18 mm (0.71 in.) threaded proximity switch style housing
Offers true non-contact position sensing
Captures rotary motion where conventional sensors fail
Two USPTO patents enable detection of on-axis rotation with up to 0.5 in. (12 mm) air gap between application and sensor
100% encapsulated for IP69k configuration that survives destructive conditions like submersion in hydraulic oil, deep sea salt water, dust control spray, or corrosive wash
Available in common communications including analog, quadrature, and CAN J1939
Caters to both mobile hydraulic and industrial installations.
0.10 in. (2.5 mm) axial misalignment
30 degree planar tilt
Rated MIL-STD 202 for shock and vibration resistance
Available housings include anodized aluminum and stainless steel
Customizable connector options available

Fill out the form below to request more information about Joral PE18 ProxEncoder Non-Contact Rotary Encoder
