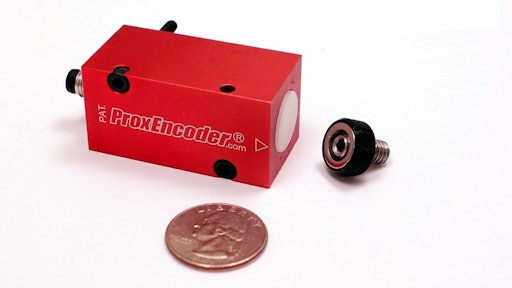

Joral PE18-BX ProxEncoder True Non-Contact Rotary Encoder

The Joral PE18-BX ProxEncoder true non-contact rotary encoder features a rectangular design for easy mounting on flat surfaces.

April 2, 2018

Joral's PE18 ProxEncoder non-contact rotary encoder product line receives a square housing with side sense capacity.

Rectangular design allows for easy mounting on flat surfaces
Two USPTO patents enables detection of on-axis rotation with up to 0.5 in. (12 mm) air gap between application and sensor
100% encapsulated for an IP69k configuration that survives destructive conditions like submersion in hydraulic oil, deep sea salt water, dust control spray, or corrosive wash
Caters to both mobile hydraulic and industrial installations
Available in common communications including analog, quadrature, and CAN J1939
Face or side oriented sensor target area
Patented true non-contact position sensing
0.10 in. (2.5 mm) axial misalignment
30 degree planar tilt
Rated MIL-STD 202 for shock and vibration resistance
Customizable connector options available

Fill out the form below to request more information about Joral PE18-BX ProxEncoder True Non-Contact Rotary Encoder
