POSITAL Analog Programmable Rotary Encoders

POSITAL has upgraded its family of analog programmable rotary encoders to provide faster dynamic response and new programming options.

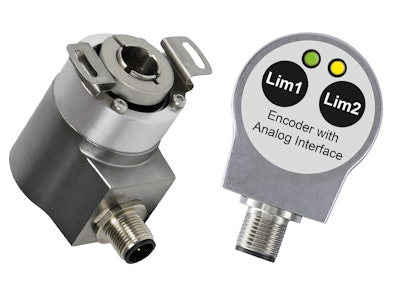

Press Photo upgrade Programmable Analog Encoders(posital)
POSITAL FRABA 56cf5586b503f

Encoder specialist POSITAL has announced a new generation of analog rotary encoders for position control.

  • Features improved accuracy, faster dynamic response and new programming options compared to earlier analog encoders
  • Accepts wider range of supply voltages, an advantage for mobile machinery applications
  • For positioning tasks that use analog control systems
  • Outputs are either voltage (0-5V, 0.5-4.5V, 0-10V or 0.5-9.5V) or current (0-20 mA or 4-20 mA)
  • Magnetic measurement mechanism is wear-free and extremely durable to offer better accuracy, reliability and service life than conventional potentiometers
  • Programmable with measurement characteristics that can be customized to meet specific application requirements
  • Programming can be carried out at factory, in a distributor’s warehouse or at customer’s job site through easy-to-use UBIFAST programming tool
  • Programmable characteristics include direction of rotation (CW or CCW), zero set and encoder output range
  • Measurement range programming allows full range of electrical outputs (voltage or current) to be set to match user-defined range of mechanical motion
  • For single-turn models, measurement range can be set to 90, 180, 270 or 360 degrees
  • Range can be set anywhere between 1 and 65,536 complete rotations for multi-turn models
  • Available with push-buttons on housing to enable user to easily specify upper and lower limits of mechanical motion, with electrical output fully spanning this range
