HS35F Incremental Hollow Shaft Encoders

Baumer has released its HS35F family of incremental hollow shaft encoders featuring an integrated enhanced monitoring system to signal potential encoder failure.

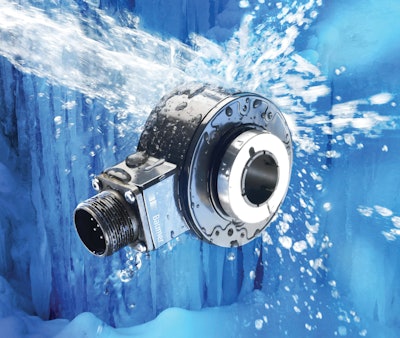

Baumerhs35fencoder 10734906

The HS35F family of incremental hollow shaft encoders from Baumer are now available with an integrated enhanced monitoring system (EMS) that signals potential failure of the encoder.

  • Provide positioning and speed control
  • Endures extreme mechanical strain
  • Rapid microprocessor continuously monitors device throughout its speed range
  • If a potential failure is detected, an alarm provides master controller with a message about the malfunction
  • Offers visual signal of encoder status as well
  • Green LED activity light indicates proper operation; flashing red LED indicates an error in increments, zero pulse or signal consistency; and solid red LED indicates output driver overload
  • If LED is off, either encoder is not supplying a signal or is improperly connected
  • Available for shaft diameters from 0.5 to 1.0 in.
  • Can be customized with shaft insert adapters that provide electrical isolation against voltages up to 2.5 kV and prevent bearing corrosion and wear
  • ShaftLock system allows shaft to reliably endure high mechanical loads even at speeds up to 5,000 rpm and 60 arcsec or better accuracy
  • Heavy-duty design includes extra durable castings and wall structures
  • Dual seals, lubricants and durable powder coating on bearing housing and cover effectively protect against corrosion and allow operation in nearly all environmental conditions
  • In IP67 versions, high performance impermeability seals protect against high pressure washdown
