CMM measuring solution

January 15, 2009

Cmmmeasuringsolution 10057800

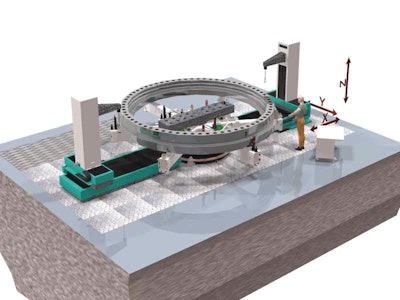

Wenzel CMM solution provides inspection cell for ring gears used in large construction cranes.

Combines proven dual-arm CMM measuring technology with precision air bearing mechanics of Wenzel WFT series of gear checkers
Capable of inspecting bearings, ring gears up to 6,000mm (19.68 ft) dia.
CMM measuring arms mounted to table that is mounted on large granite base
Arms feature linear guideways for X axis, Y and Z feature preloaded roller bearings for minimum friction
Hydrostatic rotary table can handle loads up to 100,000 lbs.
Measuring arms equipped with Renishaw SP80 scanning probes

Fill out the form below to request more information about CMM measuring solution
