AB Dynamics Plato 7.25 NVH Test System

The newest version of AB Dyanmics' Plato test system include enhanced dynamic backlash measurement capabilities.

ABDynamics PlatoNVHTestSystem 56c63e2357e38

AB Dynamics introduces the latest version of its noise/vibration/harshness (NVH) test system, Plato 7.25.

  • Includes transmission error (TE), backlash and balance measurement and analysis capabilities
  • Tests range of products including transmissions; axles; 4x4 transfer cases; PTO units; cold, crank and hot engines; power steering systems (HPS, EHPS, EPS); and complete vehicles and component parts
  • Well suited for testing in environments such as end-of-line, in-process, off-line audit, R&D, durability, in-vehicle and pass-by

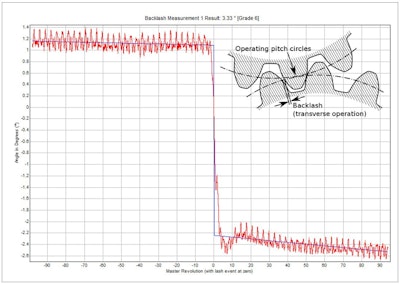

  • Contains enhanced dynamic backlash measurement capabilities with additional methods for backlash calculation, such as reversal of rotational direction and load direction (torque flip)
  • Backlash can be calculated by measuring pulse durations from high pulse rate encoders and using encoder edge-counting
  • Supports numerous National Instruments data acquisition hardware options
  • Supports PCIe-6612 plug-in card with up to eight high pulse-rate encoder channels being measured simultaneously in pulse duration or edge-counting modes for analysis of complex drivelines and gear systems
  • Includes functionality for test machine health monitoring in parallel with product testing and provides additional information when trend data is reviewed
  • Plato Analysis Licenses (PALs) can be downloaded by anyone at any time free-of-charge when data capture is not required and users simply wish to review and analyse data
