BorgWarner Organic Rankine Cycle (ORC) Waste Heat Recovery Systems

Tailpipe and EGR evaporators, exhaust flap bypass valves, turbine expander/generator/pumps & power electronics and heat exchanger/condensers recover part of the 50% of fuel energy wasted in heat rejection to improve fuel economy, reduce emissions.

Orc Group 590346a474513
Borg Warner Logo

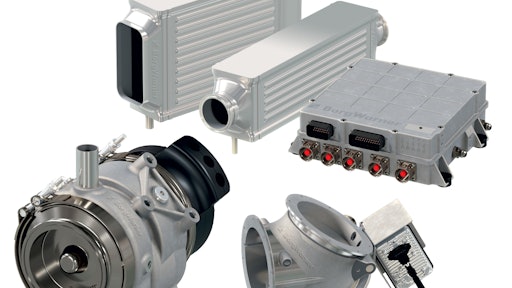

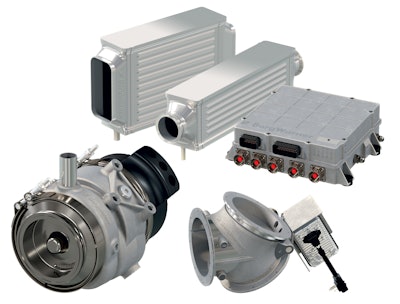

BorgWarner's Organic Rankine Cycle (ORC) waste heat recovery products and systems convert wasted exhaust heat into usable electrical energy.

Tailpipe and EGR Evaporators

  • +60% tailpipe evaporator efficiency
  • +80% EGR evaporator efficiency
  • Thermally decoupled tube-shell construction
  • Compact, modular design for ease of packaging and low cost

Exhaust Flap Bypass Valve

  • Bypasses exhaust around tailpipe evaporator when required
  • Two types: exhaust flap valve and throttle valve
  • CAN-based eActuators for fast, precise proportional control
  • May be installed upstream or downstream of evaporator
  • Low pressure drop minimizes impact on engine performance

Turbine Expander/Generator/Pump

  • 48V output
  • 7 kW nominal, 13 kW max output
  • 65% peak turbine efficiency
  • Very low weight < 10 kg mass, compact package
  • Integrated high pressure pump
  • No oil lubrication required

Turbine Expander Power Electronics

  • Bidirectional high speed motor controller
  • For 48V vehicle systems
  • Weighs less than 6 kg, compact package
  • Water cooled
  • Capable of up to 25 kW (can be scaled down)

Heat Exchanger/Condenser

  • EGR Cooler technology yields compact, high efficiency design
  • Stacked brazed plate and fin construction maximizes efficiency
  • Proprietary brazing materials ensure long-term reliability
  • Stainless steel provides compatibility for corrosive working fluids (e. g. ethanol)

ORC Waste Heat Recovery System

  • Proprietary software tools enable rapid specification to a customer’s engine requirements
  • System-level Simulations, Controls, and Testing have resulted in numerous design enhancements
  • BorgWarner ORC components have run hundreds of hours on proprietary ORC system test rigs
  • A broad product portfolio and system-level approach allow BorgWarner to maximize overall performance and durability at the lowest cost
