The Dill Shovel

Improvements to a steam shovel's dipper and boom prove to be a failure due to excessive stresses on the cylinder.

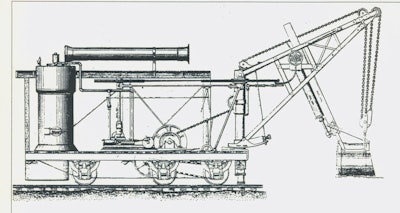

The Dill Steam Shovel and Derrick Car. The steam piston for tilting the dipper is seen under the dipper stick, and the entire boom tipped on the curved plate at its base.
The Dill Steam Shovel and Derrick Car. The steam piston for tilting the dipper is seen under the dipper stick, and the entire boom tipped on the curved plate at its base.

Thomas Dill of Bay City, MI, was awarded at least three patents for his improved steam shovel. On May 4, 1880, U.S. patent #227222 was issued for a hinged dipper and sliding dipper stick that allowed the dipper to be tilted by a steam piston for optimum digging or dumping, and for a tilting boom for the shovel. Additional patents were issued in July of 1881 to Mr. Dill for steam-operated swing and leveling jacks, among other features.

The Dill’s Steam Shovel and Derrick Car was mounted on six railroad wheels, and the middle axle was machined to allow lateral motion when negotiating extremely tight curves. It could travel at eight to 10 miles per hour by means of a spur pinion and drive chain from the engine shaft to the front axle. The dipper's capacity was approximately one to two cubic yards.

More significantly, the Dill's Steam Shovel was apparently the first standard-gauge railroad shovel. Industrial Works had been founded in Bay City, MI, in 1873 to produce boilers and sawmill equipment, and the only available railroad shovels at the time worked from wide-gauge track. George Kimball, the firm’s first president, returned to his former career in railroading following the Panic of 1873, and in his new position he approached Industrial Works in 1880 about building a standard-gauge railroad shovel that would simplify its operation and movement. Dill had assigned his patents to a principal of Industrial Works the same year, and the coincidence suggests that the Dill Shovel—which was renamed the Clement Shovel— fulfilled Kimball’s request.

The Clement Shovel proved a failure. Its crowd and swing employed very long steam cylinders to apply their motion; the eight-foot stroke crowd cylinder was directly connected to and moved with the dipper handle, thereby subjecting it to numerous stresses and strains. But the experience gave Industrial Works an entry into the railroad crane market, and it went on to be a leading producer of locomotive cranes and railroad wreckers. It returned with limited success to shovel manufacturing in the 1920s with a line of crawler machines that was discontinued by successor Industrial Brownhoist by the 1950s.
