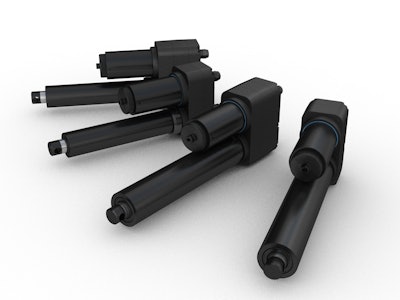

SKF CAHB Electromechanical Linear Actuators

At CONEXPO 2017, SKF will debut its latest CAHB electromechanical linear actuators with improved sealing and maximum thrust of 10,000N.

Skf 58b9b6add69c4

SKF has substantially increased the thrust and holding force of its CAHB electromechanical linear actuators.

  • Features improved sealing from IP66S to IP69K/66M (with Gore automotive vent)
  • Includes three new products - CAHB-20E, CAHB-21E and CAHB-22E - offering more than double the rated load compared with previous designs
  • Delivers maximum thrust of 10,000N and a holding force of up to 20,000N, ensuring maximum operational safety
  • Viable drop-in replacement for many more hydraulically actuated systems in agricultural and construction equipment
  • Reduces complexity of existing hydraulic circuits, improving operational efficiency and reliability, simplifying installation and ongoing maintenance
  • Provides new levels of speed and precision
  • Includes optional manual override with integrated hand crank that enables units to be adjusted without power or need for special tools, plus optional absolute or incremental position feedback
  • Compact design
  • Maintains stroke length while featuring shorter retracted length
  • Includes CAHB-2XE Series, the latest addition to SKF’s BeyondZero customer solutions, which are designed to bring significant environmental benefits to customers
  • CAHB-2XE Series saves as much as 20% of the energy required by alternative hydraulically actuated systems by not requiring consumables such as hydraulic oil and seals
