Stiebel Exhibiting Gearbox Products for Mobile Hydraulic Applications at CONEXPO 2017

At CONEXPO, Stiebel will exhibit several of its gearbox products aimed at providing improved efficiency and electric mobility capabilities.

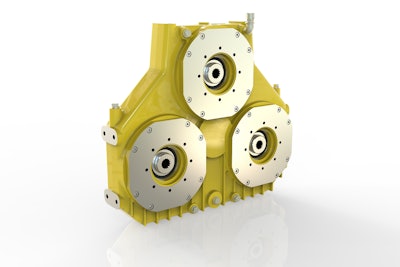

The torsionally stiff type 4382 gearbox from the P2000 Series offers a range of flexible attachment options.
The torsionally stiff type 4382 gearbox from the P2000 Series offers a range of flexible attachment options.
Small Logo 10733826

The shift towards new mobile hydraulic applications goes hand in hand with sophisticated and commercially effective systems which are capable of mastering the growing challenges under the toughest conditions. With their adaptable and high performance gearboxes, the specialists at Stiebel Drive Technology are developing the appropriate technologies – ones that also score in terms of energy balance. The company will soon also be exhibiting its latest products and proven developments at the second largest construction machine trade show, CONEXPO-CON/AGG in Las Vegas – in the South Hall 3, stand S-81405.

One convincing drive solution is the Stiebel type 4652 transfer gearbox which is used in mobile tracked drilling rigs for instance. The massive casing ribbing and the geometric offset of the drive/take-off shafts deliver an improved energy balance. This normally renders an additional oil cooler unnecessary. With maximum power of 700 kW, torque of 3,300 Nm and maximum rotational speed of 2,500 min-1, sustainable and economical drilling operations are supported.

Electric mobility for efficiency and reduced emissions

A further development is the compact type 4669 summation gearbox. This unit can be fitted directly to two integrated electric motors. Thanks to the high degree of production tolerance (radial and axial runout) of the power transmitting components, the massive block casing, the manufacture of assemblies and the excellent quality of the gearing, a high degree of operational reliability and smooth running are ensured. Stiebel has developed the summation gearbox primarily as a sustainable tractive force for medium- and heavy-duty electric commercial vehicles and mobile working machines. The solution can alternatively be designed to accommodate a generator which is driven via a cardan flange.

Compact diversity for hydraulic mobility ideas

Stiebel Drive Technology is also providing highly adaptable support for diverse ideas in the area of mobile hydraulics with its single-stage type 4382 transfer gearbox from the P2000 Series. Following the proven modular design principle, this torsionally stiff gearbox offers a range of different mounting variants. Connection is possible via a cardan flange or SAE case. On the take-off side there are three pump connections with freely selectable SAE connectors. With its weight of 200 kg and block casing, this compact gearbox offers space-saving integration possibilities. The lubrication of all relevant components is undertaken by a special system with internal ribbing and oil grooves. Technical facts relating to the pump drive: Maximum torque per drive is 1,500 Nm with maximum rotational speed up to 3,000 min-1 at a motor power of 530 kW and a transmission ratio of i = 0.6572 to 1.5217.

Further mobile hydraulic solutions for 2017

The type 4395 transfer gearbox with integrated, drive-side clutch offers many different drive options, such as diesel-electric hybrid solutions for instance. The very large shaft spacing of the power take-off shafts in inline configuration (achieved with offset intermediate shafts) allows large motor components up to SAE size 0 to be fitted, both in drive and direct drive mode, and simultaneously hydraulic drives up to SAE size E to be driven by the drive shafts on both sides. The benefits are particularly apparent in terms of the optimized – and therefore environmentally friendly – energy and fuel consumption figures.

A different solution is offered by the type 4611 pump drives which are equipped with two different transmission ratios at the pump take-offs. This facilitates optimum output speeds for various types of hydraulic pump. The Stiebel gearbox is ideally suited for use in snow groomers or utility vehicles.

With these and other ideas – such as the B2000 intermediate gearbox range which has undergone continuous development and proven itself in operation for 40 years – Stiebel Drive Technology continues to set the standards in the field of drive technologies. In Las Vegas visitors to the CONEXPO trade show can discover the benefits for themselves.
