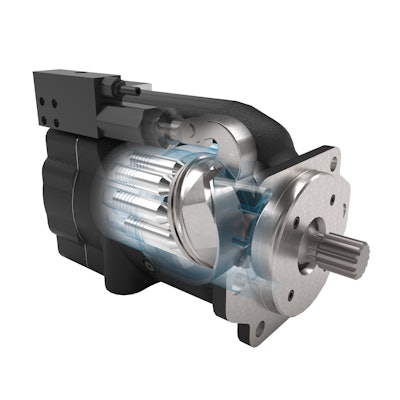

Oilgear XD5 Hydraulic Pump

The Oilgear XD5 hydraulic pump is 35% lighter than previous pump designs, and was introduced at IFPE 2020.

Xd Pump

Oilgear has introduced its newest open-loop variable-displacement pump—the XD5 hydraulic pump.

  • Designed specifically to meet the demands of the mobile on- and off-highway markets such as in mining trucks, dozers, excavators, refuse trucks and Class 8 service trucks
  • Open-loop axial-piston hydraulic pump with almost instantaneous response to system commands through a high-response, three-way, direct acting control
  • Significantly smaller and lighter than its comparable pump line, the PVG series
  • Proprietary Hard-On-Hard Technology enables pump to withstand continuous use in medium- to heavy-duty cycles mitigating contamination risks which can lead to premature or increased maintenance and costly equipment downtime
  • Orientation of pump control was changed to greatly reduce width, length, and height
  • Weighs 35% less than other pump designs
  • Available for first-fit and retro-fit
  • Range will include five models from 45-130 cc
  • Maximum displacement of 6.02 in3/rev (98.6 ml/rev)
  • Rated continuous pressure of 5,000 psi (344.8 bar)
  • Peak pressure of 5,800 psi (400.0 bar)
  • Flow rate is 46.9 gpm (177.5 lpm)
  • Maximum speed is 2,400 rpm
