Smallest 6 GPM Shuttle Valve Available

Smallest6gpmshuttlevalveavailable 10058537

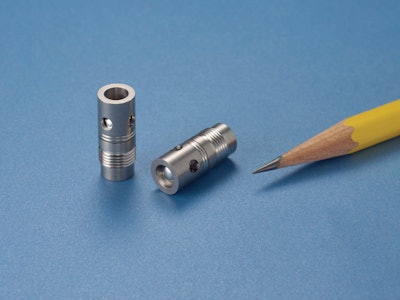

Solve hydraulic isolation problems in manifolds with the new IMH 8 mm shuttle valve from The Lee Company.

  • Compact, non-detented, selective design
  • Offers more than twice the flow capacity over the existing 5.5 mm diameter model
  • 8 mm in diameter and 16 mm long
  • Cartridge-style shuttle valve is constructed entirely of stainless steel
  • Installs easily into a drilled hole, eliminating the need for threads, o-rings or in-house designs
  • Ideal as a signal for auxiliary functions, such as hydraulically released, spring-applied brakes and load sensing applications
  • 100% performance tested for flow and leakage
