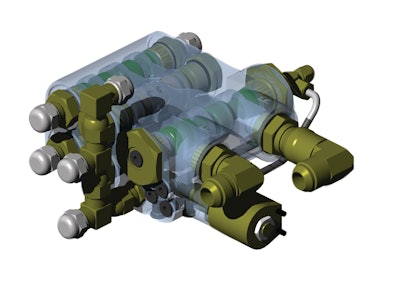

Equa-Trac II Compact, Single Valve Solution

Equatraciicompactsinglevalvesolution 10058382
Tds Legal Logo Reg

The patented Equa-Trac II compact, single valve solution was developed for use with the Mud Hog line of hydraulically powered steerable axles for agricultural, industrial and other mobile applications.

  • Addresses design problems normally associated with controlling two drive axles driven by a single pump
  • Designed for modern high-pressure hydraulic systems
  • On/off shifting - the special metered selector spool eliminates motor shocks during shifting
  • Differential flow division - allows 50/50 flow division during straight ahead operation, differential flow during turns, internal flow limiters maintain system flow to second axle if both wheels slip
  • Bi-directional - designed for hydrostatic transmissions, free flow return checks mean less back pressure and
  • less heat.
  • 6,500 psi (442 bar) rating
  • 15-50 gpm (57-190 liters/min)
  • 12v DC, 24v DC, OR 110v AC
