SV10 Solenoid Valves

Comatrol has released three SV10 Solenoid Valves featuring an updated float feature on two of the valves.

Comatrol Sv10solenoidvalves 10772051
Comatrol018 10714694

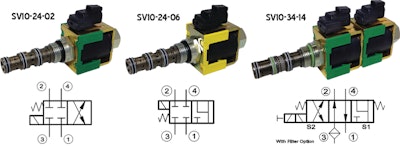

Comatrol introduces three SV10 Solenoid Valves: SV10-34-14, SV10-24-06 and SV10-24-02.

  • Includes updated float feature on two of the valves, providing circuit designers a new function for cylinder float control
  • Enables customers to make float circuits like height control or fourth position float
  • Float position connects both ends of the cylinder (or motor) to tank
  • Rated pressure is 230 bar (3,335 psi) with rated flows from 17 to 24 lpm (4.8 to 6.3 gpm)
  • Select robust coil for extreme environmental conditions
  • AC coils and optional bidirectional diodes are also available for use as needed
  • Requires energizing to go to float position
  • SV10-34-14 is a three-position, four-way valve
  • For the SV10-34-14, use optional 500 micron inlet screen to protect system from large particles
  • SV10-24-06 is a two-position, four-way with float in the shifted position
  • SV10-24-02 is a two-position, four-way with normally closed schematic
  • Apply SV10-24-06 in parallel with an SV10-34-02 (or equivalent schematic) to create a fourth position float circuit
  • Combining SV10-24-06 with SV10-34-02 enables it to become a third coil to energize to apply float, connecting both of the ports of the cylinder or motor to tank
