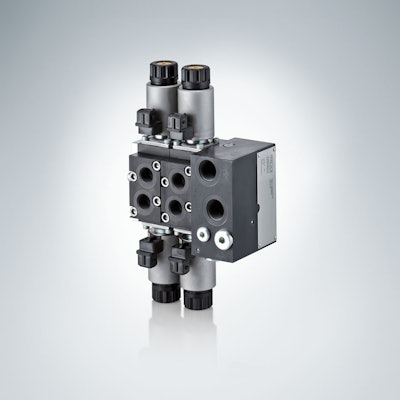

HAWE EDL Proportional Directional Spool Valve

HAWE Hydraulik's EDL proportional directional spool valve controls the direction and speed of several hydraulic functions in parallel and independently of load.

D8086 1 rgb 100x100 565cc055035f3
Logo Short 3x 957 300dpi 57029de3cfd36

The proportional directional spool valve type EDL from HAWE Hydraulik SE is well suited for hydraulic positioning and actuating functions in agricultural machines.

  • Controls direction and speed of movement of several hydraulic consumers in parallel and independently of the load
  • Implementation of every function remains unaffected by implementation of the other functions
  • Operates with load-sensing system, and is controlled directly and actuated electrically
  • Flow rates for each different consumer can be adjusted individually
  • Values ranging from less than one to 50 l/min are possible
  • Spool pistons are available in seven graduated sizes, with the smallest spool size allowing a maximum flow rate of 3 l/min
  • Provides optimal resolution and enables speeds of hydraulic motors to be controlled with very high precision
  • For system pressures of up to 320 bar
  • Flow resistance is 50% lower than usual, improving energy efficiency of hydraulic system
  • Flange hole pattern is same as for size 2 of the series PSL proportional directional spool valves for a volume flow up to 60 l/min
  • Can be provided with additional hydraulic functions by means of flange-mounted blocks and intermediate plates from the modular system
  • Type EDL and PSL valves can be combined very easily in a joint control block if specific consumers need to be controlled via CANbus
