Rexroth EHR12 Hitch Control Valve

At Agritechnica 2015, Rexroth introduced its EHR12 hitch control valve for use on mid-size tractors utilizing open center technology.

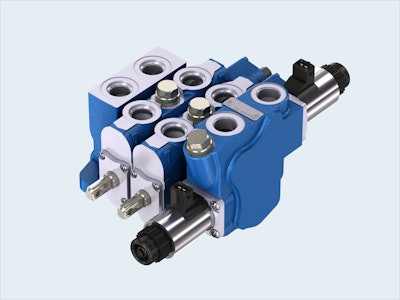

Foto PI 035 15 EHR12 56607f5fa538e
Rexroth Logo 4 C

Rexroth now offers a compact solution for the Electrohydraulic Hitch Control (EHC) on lower mid-size tractors using open center technology with the EHR12 valve.

  • Harmonized to the modular control block SM12 from Rexroth, enabling control of up to 10 consumers and all tractor-relevant functions such as pulling and alternating plows
  • Compact and flexible design enables use in applications with limited installation space
  • Can be installed as a sandwich valve, pipeline valve or end valve, as well as directly onto tractor transmission with an additional flange
  • End valve variant replaces normally required end plate of SM12 and thus further increases compactness
  • Leak-free design
  • Provides flow rate of up to 60 l/min
  • All the components required for a complete solution to fit the new valve are available, including an electronic control unit with preprogrammed software, control panels and the necessary sensors
