Eaton CLS Sectional Mobile Valve

The CLS Sectional Mobile Valve from Eaton features a modular, compact design.

April 29, 2016
Eaton

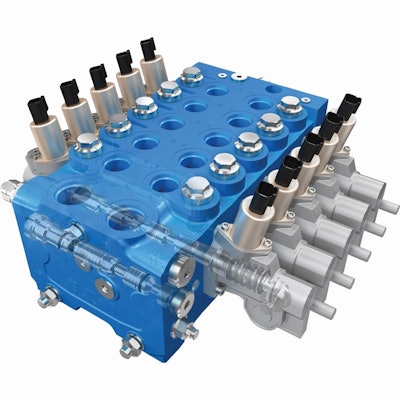

CLS 180
CLS 180
Logo Eaton 10933210

Power management company Eaton has announced the launch of its CLS Sectional Mobile Valve.

  • Features highly modular design with one of the smallest envelopes in the industry
  • Allows users to prioritize work functions to improve productivity, machine efficiency and safety
  • Includes a number of available features unique to many load-sensing valves, such as priority flow sharing and local load sense relief on each section
  • Enables customization to meet specific machine needs
  • Pre- and post-compensated design
  • Offers up to 10 working sections and available mid-inlet or customer manifolds
  • Available in models CLS100, CLS180, CLS250 or CLS350 which accommodate different flow requirements – 100 L/min, 180 L/min, 250 L/min and 350 L/min, respectively
  • Each valve may accommodate a working pressure inlet port of 350 bar (5,076.32 psi) and a maximum pressure T- port of 25 bar (362.6 psi)

CLS100

  • Rated Pressure Inlet 350 bar (5,076 psi)
  • Tank Port 10 bar (145 psi)
  • Rated Inlet Flow 150 lpm (39.6 gpm)
  • Rated Workport Flow - Post Compensated 100 lpm (26.4 gpm) at 14 bar at differential pressure
  • Ambient Operating Temperature Range -40 C / 60 C (-40 F / 140 F)
  • Oil Temperature Operating Range -25 C / 80 C (-13 F / 176 F)

    CLS180

    • Rated Pressure Inlet 350 bar (5,076 psi)
    • Tank Port 10 bar (145 psi)
    • Rated Inlet Flow 220 lpm (58.1 gpm)
    • Rated Workport Flow – Post Compensated 180 lpm (47.6 gpm) at 17 bar at differential pressure
    • Ambient Operating Temperature Range -40 C / 60 C (-40 F / 140 F)
    • Oil Temperature Operating Range -25 C / 80 C (-13 F / 176 F)

      CLS250

      • Rated Pressure Inlet 350 bar (5,076 psi)
      • Tank Port 10 bar (145 psi)
      • Rated Inlet Flow 300 lpm (79.3 gpm)
      • Rated Workport Flow – Post Compensated 250 lpm (66 gpm) at 16 bar at differential pressure
      • Ambient Operating Temperature Range -40 C / 60 C (-40 F / 140 F)
      • Oil Temperature Operating Range -25 C / 80 C (-13 F / 176 F)

        CLS350

          • Rated Pressure Inlet 350 bar (5,076 psi)
          • Tank Port 10 bar (145 psi)
          • Rated Inlet Flow 450 lpm (118.9 gpm)
          • Rated Workport Flow – Post Compensated 350 lpm (92.5 gpm) at 15 bar at differential pressure
          • Ambient Operating Temperature Range -40 C / 60 C (-40 F / 140 F)
          • Oil Temperature Operating Range -25 C / 80 C (-13 F / 176 F)
