Bosch Rexroth Pre-Compensated Valve Platform

The compact valve platform combines multiple Bosch Rexroth load-sensing directional control valves into one scalable control solution.

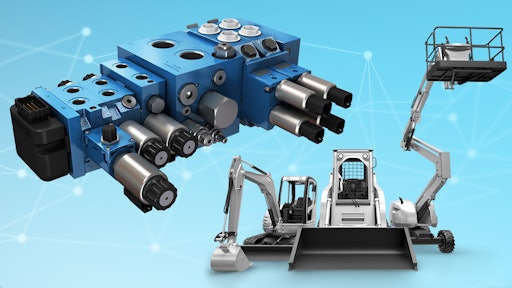

The Pre-Compensated Valve Platform lets mobile machine builders easily combine the Rexroth EDG directional valve block, the RM10/RM15 control valves and the full-featured M4-12.
The Pre-Compensated Valve Platform lets mobile machine builders easily combine the Rexroth EDG directional valve block, the RM10/RM15 control valves and the full-featured M4-12.
Bosch Rexroth
Rexroth Logo 4 C

Flexible and adaptable, the Pre-Compensated Valve Platform from Bosch Rexroth makes it easier for mobile machine builders to selectively combine a range of hydraulic control valves into a single, integrated, multifunctional control solution to match specific operational and performance requirements.

  • Modular control concept in which a single solution can mix multiple valves, scaled by flow and pressure requirements, and seamlessly combine basic valves with highly featured ones
  • Provides cost-effective “plug and play” valve platform that fits cleanly together, with minimal need for adapter plates or custom parts
  • All valves in the platform support pre-compensated load-sensing capabilities to ensure proper hydraulic flow is delivered to each function, independent of overall loads on the hydraulic systems
  • Incorporates load-sensing capabilities that improve efficiency, freeing more hydraulic power to the implement while enabling better machine designs
  • Load-sensing valves can also help reduce hydraulic cooling system size and costs, as well as potentially lower engine horsepower requirements
  • Incorporates three proven Rexroth load-sensing directional control valves
  • Compact EDG directional control valve supports flows up to 40 lpm (10.6 gpm) and up to 350 bar (5,076.3 psi) working pressure
  • RM10 and RM15 load-sensing directional control valves with flow rates of 90 and 150 lpm (23.8 and 39.6 gpm), respectively, and 280 bar (4,061.2 psi) pressure
  • M4-12 control block supporting up to 130 lpm (34 gpm) and 400 bar (5,801.5 psi) pressure for medium- and high-pressure applications
  • Combining multiple assemblies in one stack helps reduce installation time and service costs, as well as related costs for hydraulic system assembly, plumbing and fittings
  • Use of Rexroth’s new CHoose compact hydraulics configuration tool helps to quickly configure optimized solution
