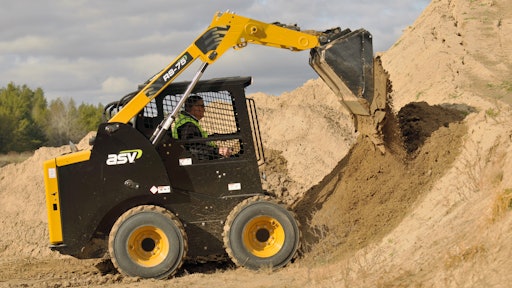

ASV Holdings Inc., an industry-leading manufacturer of all-purpose, all-season compact track loaders and skid steers, offers the large-frame, radial-lift RS-75 and vertical-lift VS-75 skid-steer loaders. The machines feature highly efficient hydraulics and cooling systems, as well as best-in-class high ground clearance, departure angle and serviceability. The skid steers are ideal for a wide range of applications, including rental, construction, landscape, snow removal and forestry.
“The RS-75 and VS-75 reflect our mission of producing equipment that makes our customers’ lives easier with industry-leading performance,” says Jim DiBiagio, ASV Chief Operating Officer. “The machines’ productivity-boosting qualities, easy serviceability and overall longevity assure a fast ROI.”
ASV builds the RS-75 and VS-75 with unique, dedicated skid-steer frames. Unlike other manufacturers that use a single chassis for both compact track loaders and skid steers, ASV designs the frame for its Posi-Track and skid-steer lines independently to provide customers with the highest performance. The result for the RS-75 and VS-75 is a 10.5-in. ground clearance, more than 2 in. higher than any machine in their class. This allows the machines to easily travel over obstructions such as logs, stumps and rocks with less risk of getting hung up. The purpose-built chassis also allows for a 24-degree departure angle, decreasing the risk of the machines getting stuck when starting to climb a steep hill.
The RS-75 and VS-75 lead the industry in serviceability. The swing-out door and cooling system open quickly to expose the engine, filters and other daily checkpoints for easy maintenance. ASV includes drain plugs on all service items, including chain cases, the hydraulic tank, the radiator and the engine oil pan, to speed the draining process. Zerk fittings on the end of all pins make greasing easy. Standard metal-face seals ensure the drive hubs don’t require maintenance for the life of the machine. In addition, the machines feature a direct-drive pump, eliminating the labor-intensive belt servicing that comes with belt-driven pumps. All of these features mean less downtime spent servicing the machine and more time operating it.
The high speed of the RS-75 and VS-75 — as fast as 11 mph when equipped with optional two-speed drive — allow for fast and easy travel uphill or downhill as well as over rough, uneven and wet terrain. To achieve these speeds, ASV designed the machines with efficient hydraulics, optimal cooling capacity and high-quality drive system components.
Both models feature an industrial 74 hp diesel engine. Built for power and reliability, the naturally aspirated 2.9-L displacement engine produces 192 ft.-lbs. of torque. The Tier 4 Final engine requires no regeneration, exhaust sensors or diesel exhaust fluid.
ASV designed the skid steers’ auxiliary hydraulic systems to operate efficiently with optional 30.9-gpm high-flow pump capacity and 3,335 psi system pressure. The machines include large line sizes, hydraulic coolers and direct-drive pumps, transferring more flow and pressure directly to the attachment and preventing power loss. This design optimizes performance so operators can run attachments more efficiently than with higher-horsepower competitive units. Many competitive machines, with belt-driven pumps and restricted hydraulic systems, lose as much as 30% of their horsepower when operating attachments. In addition, the ASV models’ skid- steer-focused design provides optimal weight distribution, reducing tire wear while maximizing lifting capacity.
The VS-75 features a rated operating capacity of 3,500 lbs. and a tipping load of 7,000 lbs. while the RS-75 has a ROC of 2,600 lbs. and a tipping load of 5,200 lbs. Both machines are 72 in. wide, and the RS-75 has a 10.4-ft. lift height while the VS-75 has a 10.8-ft. lift height. Standard reversible wheels narrow the machines to 66 in. for improved mobility in tight spaces. In addition, ASV manufactures the machines to be over-the-tire track ready.
Standard hydraulic joystick controls make operation easy and intuitive. The RS-75 and VS-75 feature industry-standard quick-attach to accommodate all conventional attachments. An optional all-weather cab not only includes heat and air-conditioning but also is pressurized for a clean operator environment. ASV RS-75 and VS-75 skid-steer loaders include 1-year warranty coverage for the full machines and a 3-year/3,000-hour powertrain and hydraulic system warranty.
