Comet EX780 and EX1190 Torque Converters

Comet introduces the EX780 and EX1190 torque converters for OEM applications.

• Can be used in a variety of applications and  or customized for an OEM’s particular use
• Multiple weight and spring calibration options allow for peak engine and overall unit performance

EX780

• Highly tunable drive clutch
• Can be used with a selection of several different driven diameters and spring configurations
• Suited for applications where immediate response to torque demand is required for down shifting and where engine speed is ideally maintained at its peak rpm
• Engine ratings include 4 cycle 20 hp (14.91 kW) and, 2 cycle 30 hp (22.37 kW) engine rating
• 1-in. (0.39 cm) bore drive
• 750-3,750 rpm max speeds

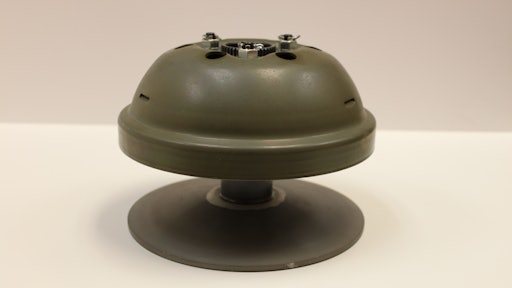

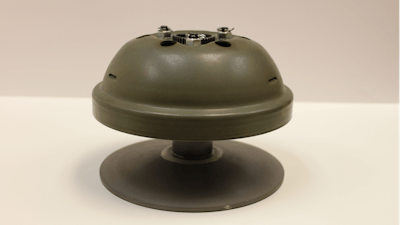

EX 1190

• Super-duty drive and driven units
• Manufactured from heavy gauge stamped steel with optional hard anodized aluminum pulley faces to withstand extreme conditions and abrasive environments
• Engine rating of 24+ hp (15.66+ kW)
• 1-1/8 and 1-7/16 in. (2.86 and 3.65 cm) bore sizes
• 3.41:1 low and 0.68:1 high pulley ratios

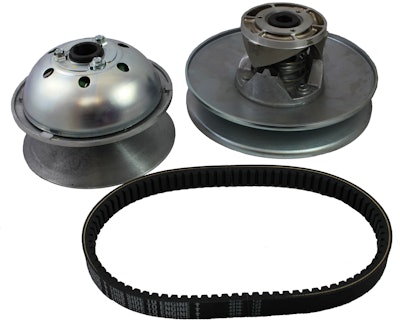

EX780 Automatic Torque ConverterComet
