Composite Disc Shaft Couplings

Zero-Max introduces its Composite Disc Shaft Couplings which were designed to withstand the rigors of demanding servomotor systems.

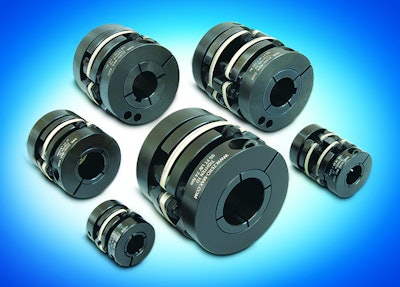

6079zeromaxcdcoupling 10323365
Zeromaxinc 10056331

Zero-Max Composite Disc (CD) Shaft Couplings combine high performance materials, design features and precision to withstand the rigors of today’s most demanding servomotor systems.

  • Precision machined of ASTM A 108 steel and 6061-T6 aluminum, body components are inherently balanced
  • Functioning components are made from precisely oriented and layered composite material similar to those composites used in aerospace applications
  • Utilizes ISO Class 12.9 hardened shoulder bolts to ensure precise alignment of assembled components
  • Provides ideal combination of high dynamic load capacity and high torsional stiffness for reliable system operation
  • Features zero backlash, good reversing load potential and smooth operation at high speeds
  • Compact with a clamping design that fits most applications
  • Standard models and sizes include single and double flex models with clamp style hubs with or without keyways
  • Torque capacities range from 40Nm to 1436Nm and beyond with speed ratings from 4400 RPM to 17,000 RPM
  • Environmentally friendly and manufactured of RoHS compliant materials
  • Long life cycles and robust design enables less replacement over time
