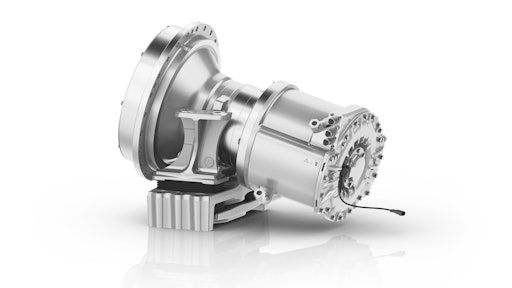

ZF CMe ECOMIX Electric Mixer Drive

Introduced at bauma 2019, the CMe ECOMIX Electric Mixer Drive replaces the hydraulic motor in a traditional mixer drive with a pre-connected electric motor and the hydraulic pump with a generator.

04 Zf Ecomix C Me
Zf Logo 660 4a Tx4a7lu Qu

The CMe ECOMIX Electric Mixer Drive enables ZF to bring mixers with zero emissions to construction sites in city centers.

  • Electric drum mixer drive paired with battery as an energy source for truck mixer parts
  • Plug-in hybrid concept
  • Replaces hydraulic motor in mixer drive with pre-connected electric motor and hydraulic pump with generator
  • Enables truck's engine to be turned off and the drum to move autonomously with no emissions due to use of an electric motor
  • Battery can be charged on the mixer system by cable and built-in generator when being driven
  • Offers compactness, low weight, and durability
  • Provides same advantages as ZF Ecomix II series
  • Improves fuel consumption and noise levels
  • During operation vehicle can access 60 kW (80.5 hp) continuous power and peak power of 125 kW (167.6 hp) for a shorter period
  • 650V used by the high voltage system was specially selected for reduced power loss
