SIKO SGH50 Position Senor for Hydraulic and Telescopic Cylinders

SIKO's SGH50 measures distances up to 5 m and features a special plastic which extends its fluid temperature resistance to 105 C.

December 6, 2017

SIKO Products Inc.

Sgh50 Telekopzylinder

Siko 591ddf9bc6627

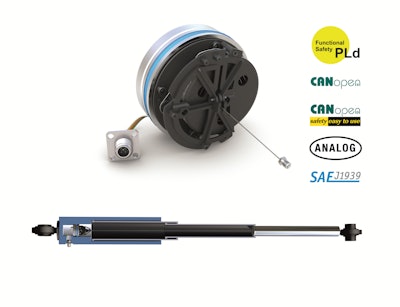

The SIKO SGH50 position sensor uses a cable mechanism for absolute measurement of hydraulic or telescopic cylinders.

Wire-actuated design
Measures distances up to 5 m (16.4 ft.)
Target applications are agricultural machinery, construction machines, municipal vehicles, forestry machines, piston accumulators and other industrial applications
Features extremely durable design
Special plastic extends fluid temperature resistance from 85 C (185 F) to 105 C (221 F)
Easily copes with shocks 100 times the force of gravity
Flexible cable completely absorbs vibrations, unlike rod-based sensors
Hydraulic medium provides additional damping of any vibration
Protection rating of IP69K and uses KV1H plug connections for further durability
Analog interfaces, CANopen or SAE J1939 provide communication with machine control system
Applications in which maximum functional safety is essential can be supplied with redundant versions (CAT3, PLd) in accordance with EN13849
Integrated teach-in function allows measurement length to be taught individually from 0-5 m, reducing number of variants for manufacturers
Hollow boring of piston unnecessary, reducing costs for manufacturers
