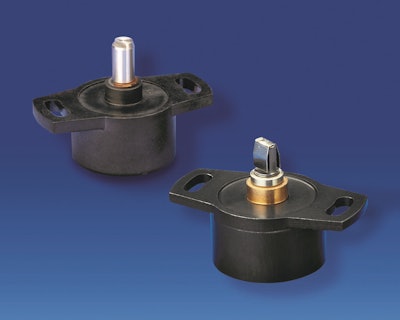

Novotechnik U.S. announces three versions of the SP 2800 Series of rotary position sensors—industrial, redundant channel industrial and motorsport.
- Life of >50 million operations and mechanical range of 0-360 degrees continuously
- Maximum vibration is 20 g from 5-2,000 Hz
- Industrial version is offered in three standard electrical ranges: 0-100, 308 or 345 degrees, and custom ranges
- Sealed against dust, dirt and water ingress to IP65
- Repeatability is to ≤0.03 degrees
- Independent linearity is ≤±0.3% for 308 and 345 degree models
- Operating temperature range is 0-120 C (32-248 F) with temporary, up to 1 hr operation, at 150 C (302 F)
- Two-channel electrically redundant version is available, as well
- Motorsport version is offered in five electrical ranges: 0-100, 130, 308, 345 or 350 degrees
- Sealed against dust, dirt and water ingress to IP67
- Repeatability is to ≤0.01 degrees
- Maximum speed is 120 rpm
- Operating temperature range is -40-150 C (-40-302 F) continuously
